3000 Series Tribrach

by Leica
MFR#: 842062
TIGER#: TS22330
Original price $405.00 - Original price $405.00
Original price List Price: .
$405.00
$405.00 - $405.00
Current price $405.00
3000 Series Tribrach
3000 Series Tribrach - $405.00
$405.00
*Must Purchase 1 for 3000 Series Tribrach

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 6/8/2024

One of our Sales Experts will be in touch!

Documents
  • Torsional stiffness: <3" (1.0 mgon)
  • Angular accuracy of 5” to 7”
  • Optional optical plummet
  • Large, maintenance-free foot screws
  • Rugged construction
  • Ideal for non-motorized TPS instruments & GNSS antenna stations
  • Suitable for backsights and control points
  • Designed for difficult environmental conditions

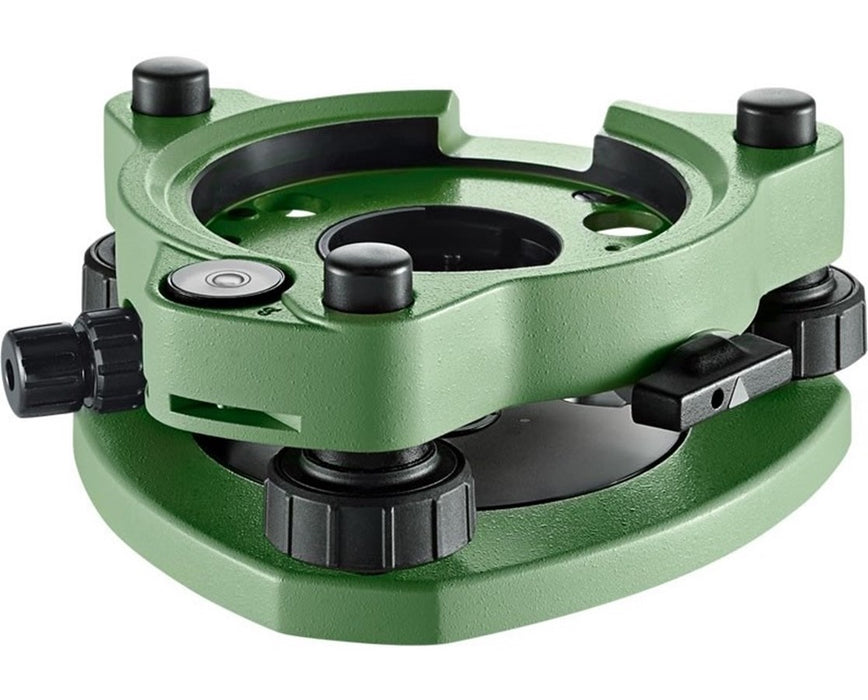

The Leica Professional 3000 Series Tribrach is a high-quality connecting device designed to ensure a secure attachment of surveying equipment to a tripod. Providing a maximum torsional stiffness of three inches (1.0 mgon), it is ideal for non-motorized TPS instruments with an angle accuracy of five inches up to seven inches. It is also suitable for GNSS antenna stations, backsights, and control points.

This attachment plate by Leica is equipped with maintenance-free foot screws to ensure smooth movements even after many years of use. With large diameter, these screws allow adjustments while wearing gloves, making it an excellent choice for extreme environmental conditions. It also enables precise forced centering with its perfectly aligned support area and base plate.

To guarantee consistently accurate positioning, the Leica Professional 3000 Series Tribrach offers an optional optical plummet that is robust enough and eliminates the need to be adjusted throughout the tribrach’s life span. It has rugged construction and weighs 1.76 pounds or 1.95 pounds. It comes in Green color.

Configuration Options

The Leica Professional 3000 Series Tribrach comes in two different models to accommodate most surveying needs. Please select your preference from the menu above.

  • 842061: GDF311 Tribrach
  • 842062: GDF312 Tribrach With Optical Plummet
  • Torsional stiffness: <3" (1.0 mgon)
  • Angular accuracy of 5” to 7”
  • Optional optical plummet
  • Large, maintenance-free foot screws
  • Smooth movements
  • Accurately aligned support area and base plate for precise forced centering
  • Rugged construction withstands harsh outdoor conditions
  • Ideal for non-motorized TPS instruments and GNSS antenna stations
  • Suitable for backsights and control points
  • Designed for use in difficult environmental conditions
  • Color: Green
  • Weighs 1.76 lbs. or 1.95 lbs

What’s in the Box

  • Leica Professional 3000 Series Tribrach

Available Product Options

  • Optical Plummet: Optional

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Accuracy
Recommended angle measurements
5” to 7”
Compatible
Suitable instruments
Non-motorized TPS instruments & GNSS antenna stations
Hysteresis
Maximum hysteresis
<3" (1.0?mgon)
Plummet
Optical/Laser
Optional optical plummet
