22X Builder's Transit Level

MFR#: 40-6910
TIGER#: TS25514
Original price List Price: $539.40
You Save: $153.73 -29%
Original price $539.40 - Original price $539.40
Original price List Price: $539.40
Current price $385.67
$385.67 - $385.67
Current price $385.67
22X Builder's Transit Level
22X Builder's Transit Level - $385.67
$385.67
*Must Purchase 1 for 22X Builder's Transit Level

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 7 - 10 Business Days Shipping Date By: 6/3/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Aluminum Rod
Aluminum Rod
Details
$33.95
$44.95
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Choice of 2 packages
  • Use for leveling, measuring angles and plumb
  • Range up to 200 ft.
  • 3/16 inch accuracy at  100 ft.
  • 22x magnification
  • 15-minute horizontal circle
  • Built-in sunshade
  • 5/8 x 11 tripod thread

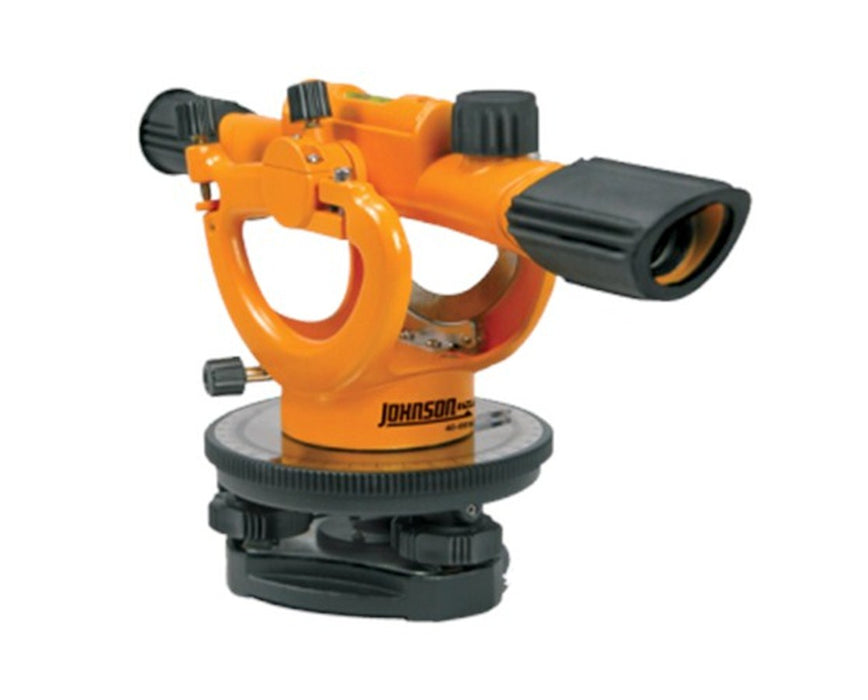

The Johnson 22X Builder's Transit Level System is an optical instrument, or a telescope, complete with a built-in spirit level used to establish a reference line it is also used to provide readings of angles in precise measurements. It is ideal for leveling foundations, driveways, patios, floors, for grading street, curbs and ditches, for aligning fences or any light construction job. It features a horizontal circle with single degrees graduation and reads by vernier direct to 15 minutes. It also comes with a vertical arc that reads degrees 45-0-45.

For effortless viewing, the leveling vial is top mounted and it comes with a built-in shade for clear sighting. Another good feature of this builder’s level is its horizontal and vertical tangent screw and vertical lock for precise movement control. An easy to turn large leveling screw also comes with this builder’s level. The Johnson 22X Builder’s Transit Level includes an instruction manual with warranty card and hard-shell carrying case. It also comes with a 3-year warranty.

Configuration Options

TheJohnson 22X Builder’s Level System is available in different packages. Select your preference from the drop-down menu above.

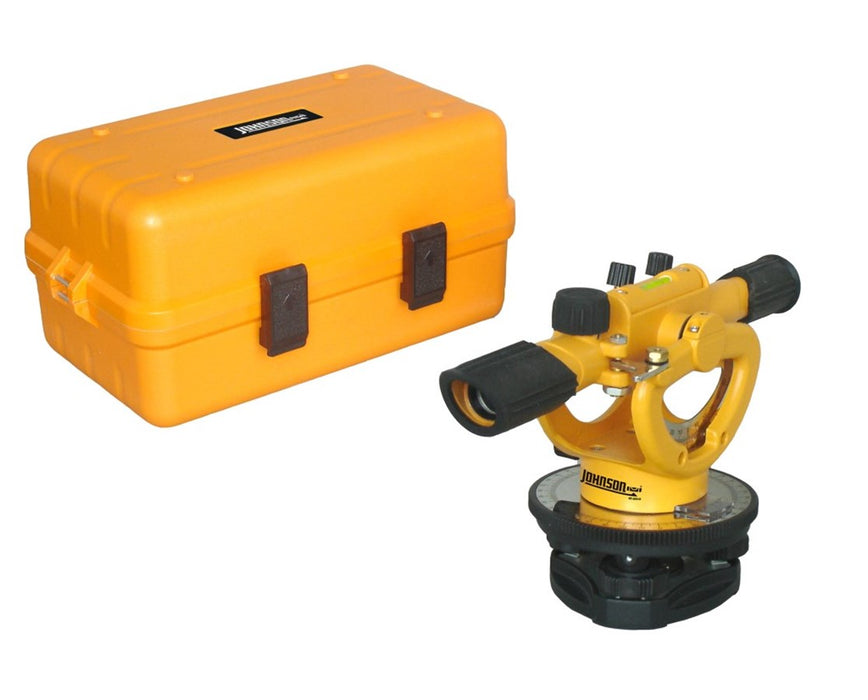

  •  40-6910: Basic package

This package includes builder's transit level, instruction manual with warranty card, hard-shell carrying case

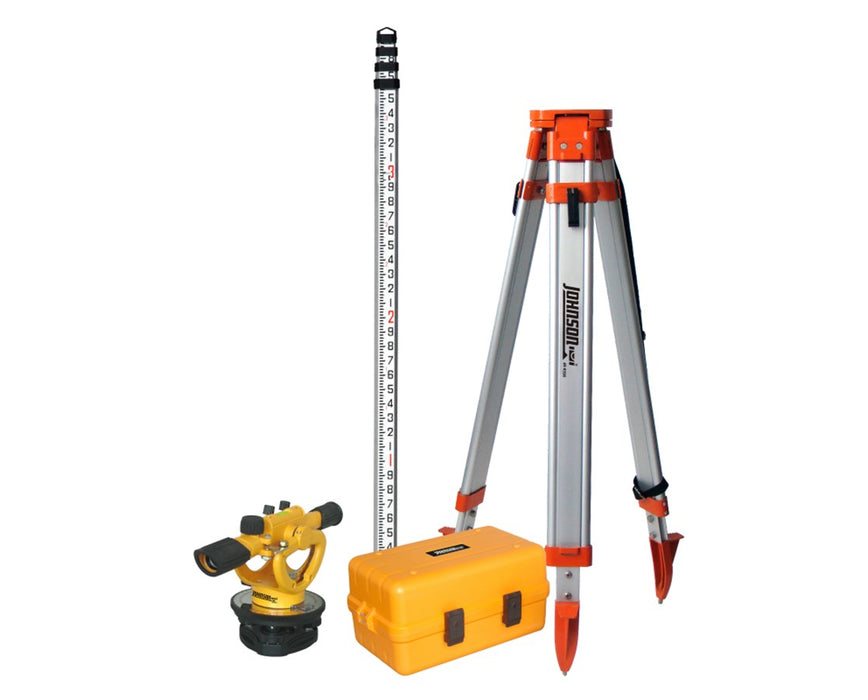

  • 40-6912: With Aluminum Tripod & 13 ft. Grade Rod

This package includes builder's transit level, contractor grade aluminum tripod, 13 ft. aluminum grade rod with carrying bag, instruction manual with warranty card and a hard-shell carrying case.

  • Choice of 2 packages
  • For leveling, measuring angles and plumb
  • Range up to 200 ft.
  • 3/16 inch accuracy at  100 ft.
  • 22x magnification
  • Vertical arc that reads 45-0-45 degrees
  • 15-minute horizontal circle
  • Vertical lock and tangent screw for precise movement control
  • Built-in sunshade
  • Large leveling screws
  • Top mounted leveling vial
  • Easy to turn large leveling screws
  • Eyepiece with fixed cross hairs
  • 5/8 x 11 tripod thread

What’s in the Box

  • Johnson 22X Builder's Transit Level System
  • Hard-shell carrying case
  • User manual
  • 3-year warranty with card

Available Package Options

Package: Basic Package or with Aluminum Tripod & 13' Grade Rod

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Angle Measurement
Horizontal Circle
15-minute
Vertical Angle
1-degree
Applications
Checking Elevation
yes
General Landscaping
yes
Layout Work
yes
Leveling Forms and Footers
yes
Measuring Cut and Fill
yes
Plumbing Walls
yes
Running Fences or Pipelines
yes
Turn and Measure Angles
yes
Distance Measurement
Leveling Accuracy
3/16 inch at 100 ft.
Range
Up 200 ft.
Features
Adjustment Knobs
yes
Bubble Vial Level
yes
Lock
yes
Sunshade
Built-in
General
Tripod Thread
5/8 x 11
Warranty
3-year
Weight
2.20 lbs (1kg)
Telescope
Erect
Magnification
22x
Minimum Focus Distance
4 ft
Objective Aperture
22 mm
Stadia Lines
yes
