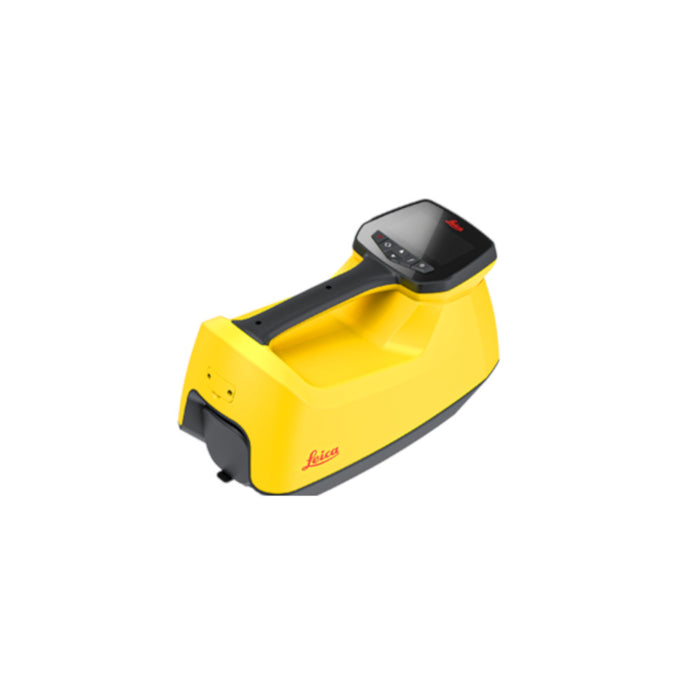

Leica DE100 10-Watt Signal Transmitter | 1005573

by Leica

MFR#: 1005573

List Price: USD $2,700^.00

You Save: USD $837^.00 -31%

USD $2,700^.00 - USD $2,700^.00

List Price: USD $2,700^.00

USD $1,863^.00

USD $1,863^.00 - USD $1,863^.00

USD $1,863^.00

Store Pickup: List of available stores available on the Checkout page.

Leica DE100 10-Watt Signal Transmitter | 1005573 - USD $1,863^.00

USD $1,863^.00

*Must Purchase 1 for Leica DE100 10-Watt Signal Transmitter | 1005573

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 1/1/2025

Documents

Product Manual Item Brochure

High Visibility LCD Color Screen
IP65 Environmental Protection
Delivers up to 1A of current
Dual-Output Port to connect 2 accessories simultaneously
Frequency Range: 256Hz - 200kHz
Capability to alert presence of hazardous voltages

The Leica DT100 system, integrated with the DE100 10-watt signal transmitter, is engineered to enhance signal transmission and deliver unmatched accuracy in utility locating. With up to 1A of maximum current and dual output ports, users can connect and operate two accessories simultaneously with a single button press for seamless operation.

Reliable Performance for Critical Applications

The DE100's embedded display provides real-time information on current, voltage, and impedance, ensuring optimal signal flow within utilities. The system's signal frequency analyzer delivers an accurate view of the environment and signal quality, empowering users with data-driven confidence. For added safety, the DE100 alerts users to hazardous high voltages, enhancing on-site reliability and protection.

Convenience in Every Detail

Designed for efficiency, the Leica DE100 system includes all necessary accessories in a single compact bag. From connection leads with removable heads to dual earth poles and a versatile transmitter/receiver clamp, this system equips professionals to tackle fieldwork without additional tools.

Frequency Range: 256Hz - 200kHz
Current Max: 1A - (0.5A Above 45kHz)
Voltage Max: 90 V rms
Environmental Protection: IP65
Operating Temperature: -4°F to +122°F (-20°C to +50°C)
Power Source: Li-Ion Battery/AA Alkaline Battery
