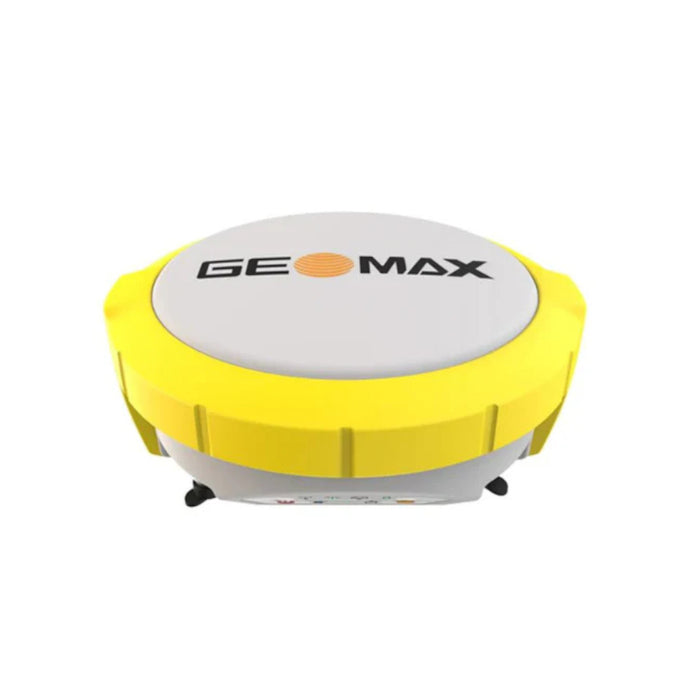

GeoMax Zenith16 GNSS Smart Antenna, 555 Channels

by Geomax

MFR#: 996346

USD $7,200^.00 - USD $8,000^.00

List Price: USD

USD $7,200^.00

USD $7,200^.00 - USD $8,000^.00

USD $7,200^.00

Store Pickup: List of available stores available on the Checkout page.

GeoMax Zenith16 GNSS Smart Antenna, 555 Channels - USD $7,200^.00

USD $7,200^.00

*Must Purchase 1 for GeoMax Zenith16 GNSS Smart Antenna, 555 Channels

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 6/6/2025

Software is not included - Sold Separately

Documents

Item Brochure

Essential Add-Ons:

Geomax X-PAD Ultimate Survey GNSS

Details

$1,200^.00

$1,404^.00

Tiger Supplies 2M Carbon Fiber 2-Section GPS Pole w/ Snap Lock

Details

$115^.00

Zenius08 Android Field Controller Tablet

Details

$2,600^.00

$3,060^.00

Flexible GNSS Configuration: Tracks GPS, GLONASS, and SBAS by default; optional upgrade for full constellation support including BeiDou, Galileo, and QZSS.
Dual Configuration Options: Choose a version with built-in SATEL UHF radio (403–473 MHz, 500 mW) for local RTK setups, or a non-radio variant for network-based workflows like NTRIP.
Built to Endure: With IP68 protection, shock resistance up to 2m, and an extended operating range (-40°F to 149°F), it handles tough field conditions with ease.
Efficient Data Handling: Includes microSD card and USB connectivity for seamless logging and transfer of static and RTK data.
Quick Setup & Accuracy: RTK fix in under 4 seconds and centimeter-level precision ensures survey-grade performance.
xPad Software Compatible: Fully integrates with GeoMax’s xPad Ultimate for intuitive field-to-office workflows.

GeoMax Zenith16 GNSS Receiver delivers top-tier positioning performance at an affordable price, making it an ideal choice for small to mid-sized surveying and construction teams looking to step up their productivity. Powered by NovAtel's OEM7 engine and featuring 555 channel tracking, it supports GPS, GLONASS, and SBAS by default - with optional BeiDou, Galileo, and QZSS integration for enhanced flexibility.

Built with ruggedness in mind, the Zenith16 is IP68-rated, shock-resistant up to a 2-meter drop, and operates in extreme temperatures from –40°F to +122°F. The removable microSD card enables easy data handling in the field, and removable Li-Ion batteries support up to 9 hours in static mode or 6 hours in rover use. It offers seamless connectivity via USB, serial, and Bluetooth ports.

Satel Radio Option: With or Without?

The Zenith16 is available in two configurations:

With SATEL UHF Radio: Includes a 500mW (optional 1W) SATEL internal UHF radio with 403–473 MHz frequency range for RTK base/rover communication. Ideal for users who plan to operate in base-rover setups without relying solely on cellular correction services.
Without UHF Radio: Perfect for network RTK workflows, especially in areas with reliable NTRIP or when working with third-party base stations.

Whether you choose the radio or non-radio version, both models share the same robust GNSS performance and rugged construction.

With full X-PAD field software compatibility and Q-Lock Pro™ multipath mitigation, this receiver makes reliable data capture fast and easy. Whether you’re collecting topo points, performing stakeouts, or integrating it into hybrid workflows, the Zenith16 offers an efficient, low-barrier entry into professional GNSS.

Tracks GPS, GLONASS, SBAS with optional Galileo, BeiDou & QZSS
Powered by NovAtel OEM7 – 555-channel engine
Available in two variants – with or without SATEL UHF radio
403–473 MHz radio range (500 mW output) for base-rover communication
9 hours of battery in static mode, 6 hours in rover mode
IP68-rated for water and dust protection
Supports xPad field software for streamlined workflow
Fast RTK initialization (<4 sec) with 10 mm + 1 ppm horizontal accuracy
Ideal for site layout, boundary surveys, and construction workflows

What’s in the Box

(1) Zenith16 GNSS Smart Antenna (as per choice)
(1) MicroSD Card
(1) USB Cable
Hard case
Multilingual Quick Guide

1-Year Manufacturer Warranty.

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy

RTK

Hz: 10 mm + 1 ppm / V: 20 mm + 1 ppm

Static

Hz: 5 mm + 0.5 ppm / V: 10 mm + 0.5 ppm

Battery/Power

Battery Life

9 h (static) / 6 h (rover)

Power Source

Removable Li-Ion 6.12 Ah

Voltage

7.4 V

Communication Interface

Bluetooth

Yes

Cellular

Yes

Wireless LAN

Yes

UHF Radio

Optional

Display/Keypad

Keys

On/off and Fn Key

General

Dimensions

3.74" x 7.79" (95 mm x 198 mm)

Warranty

1-Year Manufacturer's Warranty

Weight

2.60 lb (1.18 kg)

Temperature

Operating

-40°F to 149°F (–40°C to 65°C)

Tracking Features

Channels

555

Satellites

GPS / GLONASS / BeiDou (Optional) / Galileo (Optional) / QZSS (Optional)

Frequency

Multi-Frequency

Tilt Compensation
