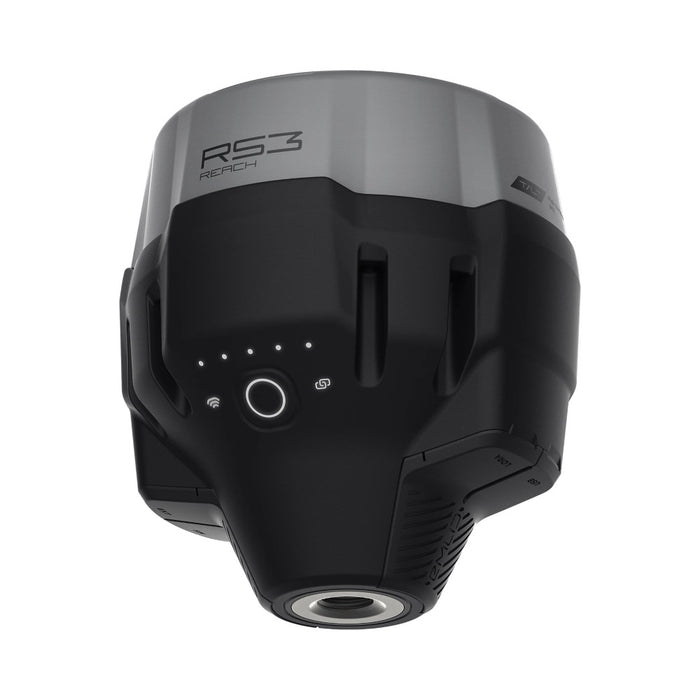

Emlid Reach RS3 RTK GNSS Receiver

by Emlid

SKU RCH205-I

USD $2,999^.00 - USD $2,999^.00

List Price: USD

USD $2,999^.00

USD $2,999^.00 - USD $2,999^.00

USD $2,999^.00

Store Pickup: List of available stores available on the Checkout page.

Emlid Reach RS3 RTK GNSS Receiver - USD $2,999^.00

USD $2,999^.00

*Must Purchase 1 for Emlid Reach RS3 RTK GNSS Receiver

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 12/7/2025

Documents

Product Datasheet

Essential Add-Ons:

Control Point Corrections TrueRTK

Details

$1,500^.00

GNSS: GPS/QZSS (L1C/A, L2C), GLONASS (L1OF, L2OF), Galileo (E1-B/C, E5b), BeiDou (B1I, B2I)
Channels: 184 channels
Tilt Compensation: Up to 60° tilt, accuracy: ±2 mm + 0.3 mm/°
Accuracy (RTK): Horizontal: 7 mm + 1 ppm; Vertical: 14 mm + 1 ppm
Update Rate: 10 Hz
RTK Fix Time: Typically <5 seconds
Connectivity: LTE, Wi-Fi, Bluetooth, RS-232, USB-C
Radios: LoRa (915/868 MHz), UHF receiver (410–470 MHz, TRIMTALK 450S protocol)
Correction Format: NTRIP, RTCM3
Power Source: 7.2V/5.2Ah Li-Ion Battery
Battery Life: Up to 22 hours
Durability: IP67-rated
Operating Temperature: –4°F to +149°F (–20°C to +65°C)

The Emlid Reach RS3 is a high-performance multi-band RTK GNSS receiver equipped with IMU-based tilt compensation. Designed for both base and rover configurations, the RS3 delivers centimeter accuracy even when the pole is tilted—no bubble leveling required. With built-in LTE, Wi-Fi, Bluetooth, LoRa, and UHF connectivity, it supports diverse correction input and output methods, allowing it to operate seamlessly as a base or rover. Housed in a compact and durable IP67-rated enclosure, the Reach RS3 is ready for challenging job site environments, delivering up to 22 hours of field operation on a single charge.

Multi-Constellation GNSS Tracking : Supports GPS/QZSS, GLONASS, Galileo, and BeiDou across multiple bands (L1C/A, L2C, E1, E5b, etc.) for reliable positioning in challenging environments.
High-Rate Data & 184 Channels : Processes GNSS data at a 10 Hz update rate, with 184 tracking channels to ensure consistent performance even in difficult conditions.
IMU Tilt Compensation : Survey confidently with up to 60° tilt—no bubble needed. The RS3’s IMU-based tilt compensation delivers centimeter accuracy (±2 mm + 0.3 mm/°) without requiring calibration or being affected by magnetic interference.
High Precision & Fast RTK Fix : Achieves centimeter-level accuracy in seconds. Typical fix time is under 5 seconds using corrections via LoRa, UHF, or NTRIP over LTE.
Flexible Radio & Connectivity Options : Includes internal LTE modem with global coverage, LoRa radio (915/868 MHz), and UHF receiver (410–470 MHz). Wi-Fi, Bluetooth, RS-232, and USB-C provide additional integration options.
Long Battery Life: Works up to 18 hours in RTK mode with tilt compensation, or 22 hours during static logging. Charges via USB-C and supports pass-through power from a power bank.

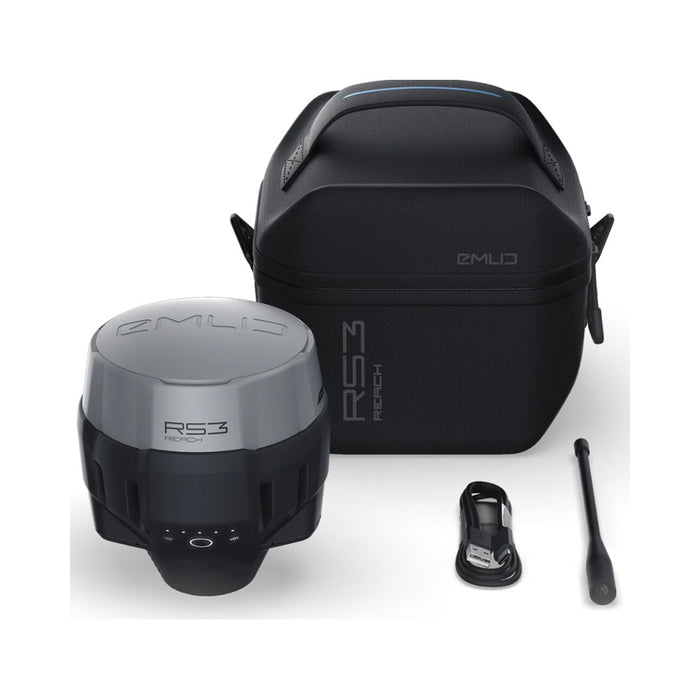

What’s in the Box

Reach RS3 Receiver
LoRa Antenna
USB Cable
Carrying Case with Strap

1-Year Manufacturer's Warranty.
