Emlid Reach RS2+ Multi-Band RTK GNSS Receiver

by Emlid

SKU 100298

USD $2,699^.00 - USD $2,699^.00

List Price: USD

USD $2,699^.00

USD $2,699^.00 - USD $2,699^.00

USD $2,699^.00

Store Pickup: List of available stores available on the Checkout page.

Emlid Reach RS2+ Multi-Band RTK GNSS Receiver - USD $2,699^.00

USD $2,699^.00

*Must Purchase 1 for Emlid Reach RS2+ Multi-Band RTK GNSS Receiver

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 12/6/2025

Documents

Product Datasheet

Essential Add-Ons:

Control Point Corrections TrueRTK

Details

$1,500^.00

GNSS Signals: GPS/QZSS L1C/A, L2C; GLONASS L1OF, L2OF; Galileo E1-B/C, E5b; BeiDou B1I, B2I
Channels: 184
Update Rate: Up to 10 Hz
RTK Accuracy: H: 7 mm + 1 ppm ; V: 14 mm + 1 ppm
Static Accuracy: H: 4 mm + 0.5 ppm ; V: 8 mm + 1 ppm
PPK Accuracy: H: 5 mm + 0.5 ppm ; V: 10 mm + 1 ppm
RTK Range: Up to 60 km
PPK Range: Up to 100 km
PPP Support: Yes (RINEX logging compatible with OPUS, AUSPOS, PPP services)
Internal Modem: Global LTE with 2G/3G fallback
LoRa Radio: 868/915 MHz, up to 8 km range
Internal Storage: 16 GB
Connectivity: Bluetooth 4.0/2.1 EDR, Wi-Fi 802.11 b/g/n, RS-232, USB-C
Power Source: LiFePO4 6400 mAh
Operating Hours: Up to 22 hours
Ingress Protection: IP67
Operating Temperature: -4°F to +149°F (-20°C to +65°C)
Dimensions: 126 × 126 × 142 mm
Weight: 2.09 lbs. (950 g)

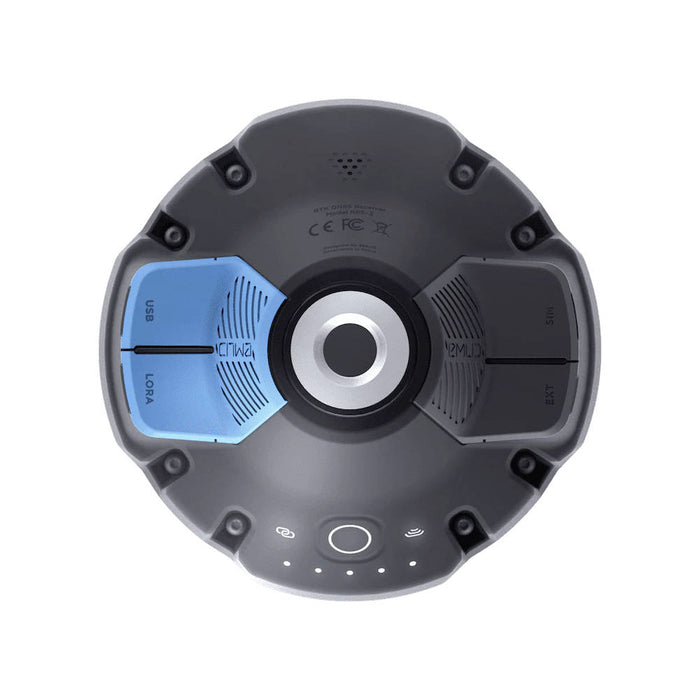

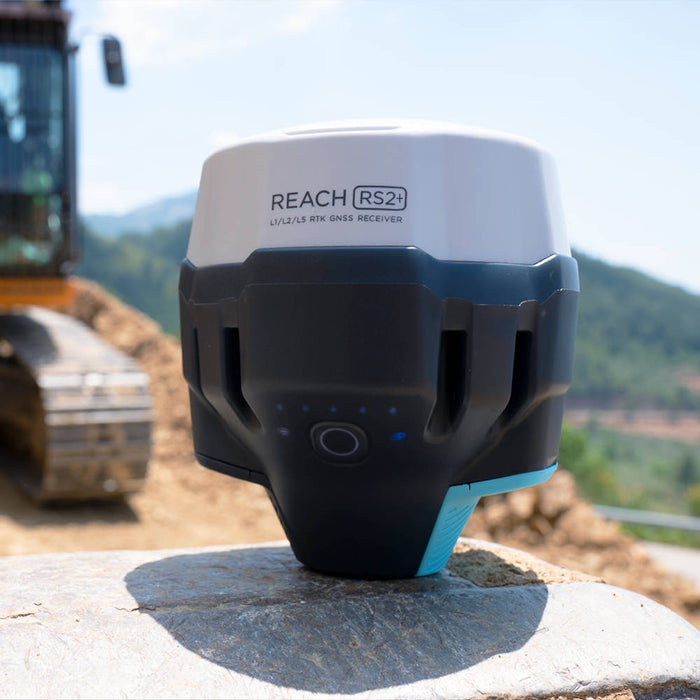

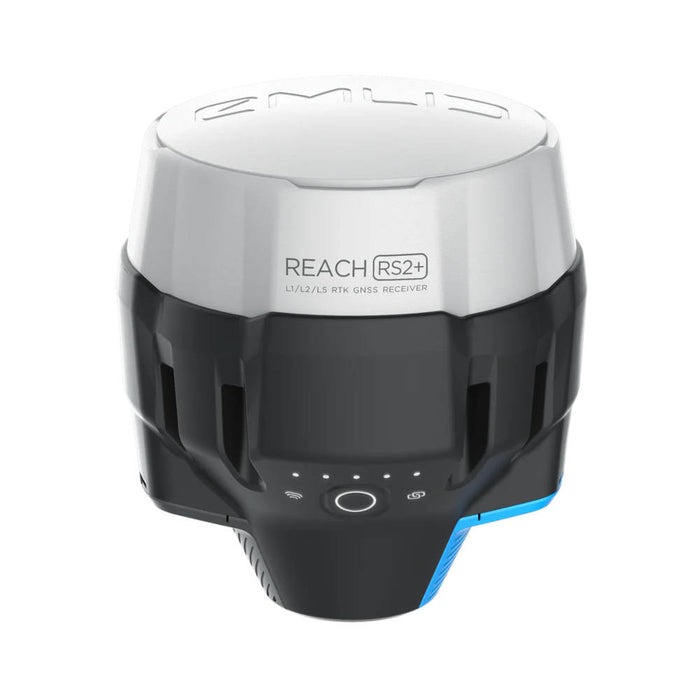

The Reach RS2⁺ multi-band RTK GNSS receiver delivers centimeter-level accuracy for construction layout, mapping, and site navigation. Powered by a 184-channel GNSS engine, it tracks GPS, GLONASS, Galileo, BeiDou, and QZSS signals for reliable fixes in challenging environments. Fast RTK convergence enables precise measurements in seconds, with accuracy maintained up to 60 km in RTK and 100 km in PPK. Built-in PPP support allows post-processed results anywhere using services like OPUS or AUSPOS.

The RS2⁺ features a global LTE modem for independent NTRIP access, a LoRa radio with 8 km range, and 22-hour battery life for uninterrupted operation. Its rugged IP67 housing, impact-resistant polycarbonate body, and shock-absorbing elastomer covering ensure dependable performance in extreme temperatures from −4°F to +149°F. With Bluetooth, Wi-Fi, USB-C, and RS-232 connectivity, the RS2⁺ integrates seamlessly with survey software and works as either a base or rover in your GNSS setup.

Multi-Band GNSS Tracking: Supports GPS, GLONASS, Galileo, BeiDou, and QZSS signals for robust positioning in varied environments.
Fast RTK Convergence: Achieves centimeter-level accuracy in seconds, with stable fixes up to 60 km in RTK mode and 100 km in PPK mode.
PPP Capability: Logs RINEX data for post-processing with OPUS, AUSPOS, and PPP services for global accuracy.
Global LTE Modem: Integrated modem with 2G/3G fallback for independent NTRIP corrections without a smartphone connection.
Long-Range LoRa Radio: 868/915 MHz LoRa link enables up to 8 km base-to-rover connectivity when internet is unavailable.
Rugged Construction: IP67-rated housing with impact-resistant polycarbonate body and elastomer shock protection.
Extended Battery Life: LiFePO4 battery powers up to 22 hours of logging or 16 hours in LTE RTK mode, rechargeable via USB-C.
Flexible Connectivity: Bluetooth, Wi-Fi, RS-232, and USB-C interfaces for seamless integration with survey and GIS systems.

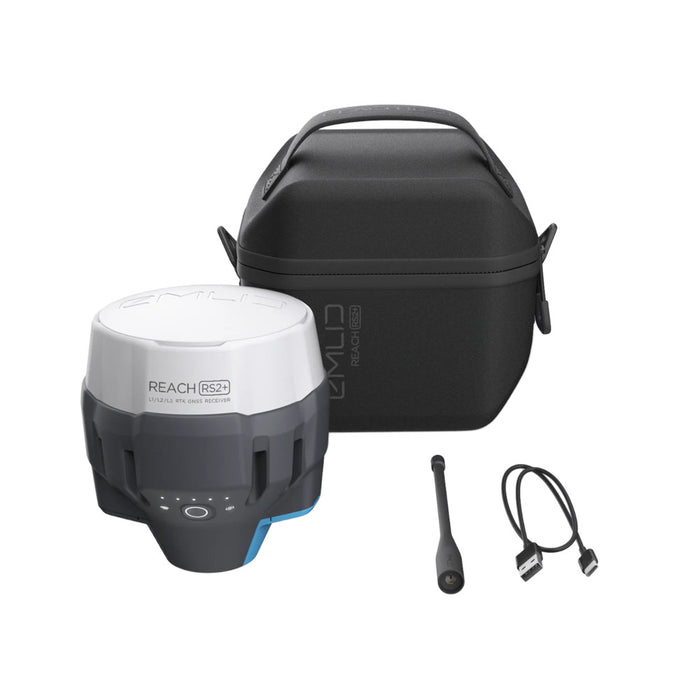

What’s in the Box

Reach RS2+ Receiver
LoRa Antenna
USB Cable
Carrying Case with Strap

1-Year Manufacturer's Warranty.
