GPS/GNSS Systems
-

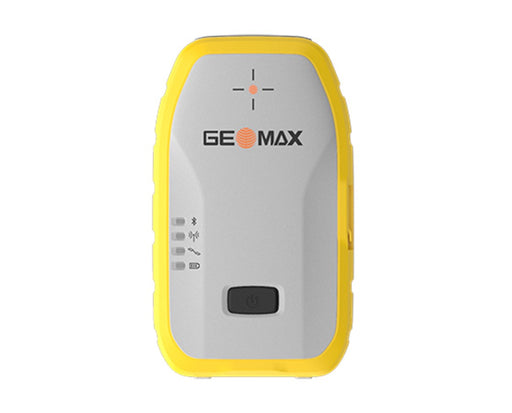

Original price $5,346.00 - Original price $5,346.00Original price List Price:$5,346.00$5,346.00 - $5,346.00Current price $5,346.00GeoMax Zenith06 GNSS Receiver
Geomax- 184 channels for reliable satellite tracking
- Multi-constellation support (GPS, Glonass, Galileo, Beidou, QZSS, SBAS)
- Lightweight at only 0.7 lb
- Works with X-PAD Ultimate field software
- Convenient data management with cloud-based X-PAD 365
- Fast connection with QR scanning functionality
- IP67 dustproof and water-resistant rating
- Long-lasting 20-hour battery life
Original price $5,346.00 - Original price $5,346.00Original price List Price:$5,346.00$5,346.00 - $5,346.00Current price $5,346.00 -

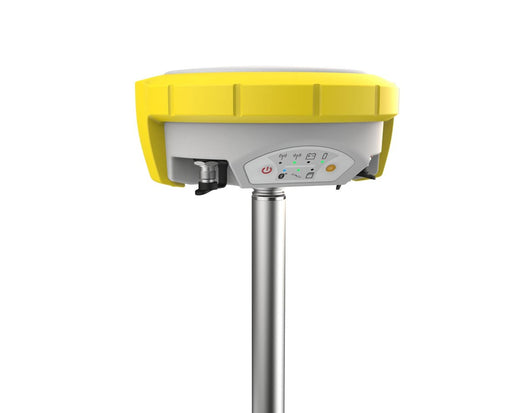

Original price $10,100.00 - Original price $10,861.50Original price List Price:$10,100.00 - $10,861.50$10,100.00 - $10,861.50Current price $10,100.00GeoMax Zenith60 Pro GNSS Rover Kit (w/o Pole)
Geomax- Advanced GNSS Support: Tracks GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC, and SBAS for robust positioning in any environment.
- Tilt Compensation: Built-in, activated IMU supports up to 30° tilt with 2 cm accuracy—no calibration needed.
- Flexible Communication: Choose from models with or without UHF radio (ZR100 antenna included with UHF version).
- Reliable RTK Accuracy: Achieve 8 mm + 1 ppm (horizontal) and 15 mm + 1 ppm (vertical) precision with fast 4-second initialization.
- Rugged Construction: IP68-rated housing withstands harsh environments and extended use.
- Field-Ready Battery Setup: Comes with 2 hot-swappable Li-ion batteries for up to 12 hours of operation (static mode).
- Smart Connectivity: Bluetooth, USB, RS232, and WLAN for easy device integration.
Original price $10,100.00 - Original price $10,861.50Original price List Price:$10,100.00 - $10,861.50$10,100.00 - $10,861.50Current price $10,100.00 -
Original price $10,100.00 - Original price $10,800.00Original price List Price:$10,100.00 - $10,800.00$10,100.00 - $10,800.00Current price $10,100.00
GeoMax Zenith60 Pro GNSS Receiver
Geomax- Dual Configuration Options: Available with or without integrated SATEL TR4+ UHF radio (500 mW, 403–473 MHz), depending on your RTK setup.
- IMU Tilt Compensation: Built-in IMU provides 2 cm accuracy at up to 30° tilt with no calibration required—ideal for fast-paced fieldwork.
- Full GNSS Support: Tracks GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC, and SBAS constellations for consistent accuracy in any terrain.
- RTK Accuracy: Delivers 8 mm + 1 ppm (horizontal) and 15 mm + 1 ppm (vertical) precision with typical RTK initialization in just 4 seconds.
- Fast 20 Hz Update Rate: Ensures high-speed position tracking and responsive corrections during real-time surveying.
- Seamless Software Integration: Compatible with X-PAD field and office software for real-time collaboration, cloud sync, and total station control.
- Tough & Reliable: Rated IP68 with shock resistance, operates in temperatures from -22°F to +140°F, and runs up to 12 hours on hot-swappable batteries.
- Flexible Connectivity: Features Bluetooth, USB, RS232, and WLAN plus a 4G LTE modem (Quectel EG25-G) for robust data exchange.
Original price $10,100.00 - Original price $10,800.00Original price List Price:$10,100.00 - $10,800.00$10,100.00 - $10,800.00Current price $10,100.00 -
Original price $10,861.00 - Original price $10,861.00Original price List Price:$10,861.00$10,861.00 - $10,861.00Current price $10,861.00GeoMax Zenith60 LTE-UHF-IMU GNSS Rover Set (w/o Pole) | 6017297
Geomax- Advanced GNSS Tracking: Supports full constellations including GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and NavIC for robust signal reception in challenging environments.
- RTK Performance: Achieves high-precision positioning with RTK accuracy of 8 mm + 1 ppm (horizontal) and 15 mm + 1 ppm (vertical). Fast initialization—typically within 4 seconds.
- Tilt Compensation: Calibration-free IMU offers tilt compensation up to 30°, maintaining 2 cm accuracy. Ideal for faster point collection in hard-to-reach or sloped areas.
- Built-in UHF Radio: Comes with a powerful SATEL TR4+ UHF radio (403–473 MHz, 500 mW) and includes the ZRA100 Gainflex antenna, ensuring strong signal coverage in RTK workflows.
- 4G Cellular Connectivity: Integrated modem supports LTE FDD, TDD, UMTS, and GSM for reliable NTRIP corrections when working with RTK networks.
- Durable & Reliable: Rated IP68 for water and dust protection. Operates in temperatures from -22°F to +149°F, built for rugged outdoor conditions.
- Hot-Swappable Batteries: Includes two Li-Ion batteries for up to 11 hours of rover runtime. Batteries can be swapped without rebooting, keeping crews productive.
- Compact Rover Kit: Ships with batteries, charger, antenna, USB accessories, hard container, and quick guide. Note: Rover pole is not included.
Original price $10,861.00 - Original price $10,861.00Original price List Price:$10,861.00$10,861.00 - $10,861.00Current price $10,861.00 -
Original price $10,800.00 - Original price $10,800.00Original price List Price:$10,800.00$10,800.00 - $10,800.00Current price $10,800.00
GeoMax Zenith60 LTE-UHF-IMU GNSS Receiver | 948901
Geomax- Tracks All Constellations: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, NavIC, and L-Band
- Calibration-Free Tilt Compensation: Achieve 2 cm accuracy with up to 30° tilt
- RTK Accuracy: 8mm + 1ppm (horizontal), 15mm + 1ppm (vertical)
- Built-In SATEL TR4+ UHF Radio: 403–473 MHz, adjustable 500 mW to 1 W output
- Fast RTK Initialization: Fix in as little as 4 seconds
- Field-Proven Durability: IP68, MIL-STD-810G, and operates from -40°F to +149°F
- Smart Power Design: Dual hot-swappable Li-Ion batteries, up to 12.5 hours static use
- Flexible Connectivity: Bluetooth, USB, RS232, Wi-Fi with hotspot/client modes
- 8GB Internal Memory + MicroSD Slot: Ample onboard and expandable storage
- Compatible with xPad Field Software: For surveying, mapping, and layout workflows
- Complete Kit Included: 2 batteries, charger, microSD card, USB cable, USB stick, case, quick guide
Original price $10,800.00 - Original price $10,800.00Original price List Price:$10,800.00$10,800.00 - $10,800.00Current price $10,800.00 -
Original price $8,198.50 - Original price $8,198.50Original price List Price:$8,198.50$8,198.50 - $8,198.50Current price $8,198.50GeoMax Zenith55 LTE-UHF-IMU GNSS Receiver | 996668
Geomax- Multi-Constellation Tracking: 600+ channels with full support for GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and NavIC.
- RTK Accuracy: 10 mm + 1 ppm (horizontal), 20 mm + 1 ppm (vertical); 5 mm + 0.5 ppm in static mode.
- Calibration-Free Tilt Compensation: Capture accurate points without leveling the pole — saves time on uneven terrain.
- Connectivity: Integrated UHF radio (TRM101, 500 mW / 1000 mW), Bluetooth 5.0, USB, RS232, and Wi-Fi.
- 4G LTE Modem: Supports major cellular networks via removable SIM.
- Onboard Memory: Dual logging to 8 GB internal memory and microSD card.
- Battery Life: Up to 12.5 hours (static) or 11 hours (rover mode) with hot-swappable batteries.
- Field Durability: IP68-rated, MIL-STD-810G compliant, withstands 2-meter drop and extreme temperatures.
Original price $8,198.50 - Original price $8,198.50Original price List Price:$8,198.50$8,198.50 - $8,198.50Current price $8,198.50 -
Original price $8,500.00 - Original price $8,500.00Original price List Price:$8,500.00$8,500.00 - $8,500.00Current price $8,500.00GeoMax Zenith55 GNSS Receiver - 6018656
Geomax- Multi-constellation: GPS, Glonass, Galileo, BeiDou, QZSS, NavIC
- Multi-frequency: Resilient to high solar activity
- GNSS board with 600+ channels
- Calibration-free tilt compensation
- Integrated LTE phone modem and UHF radio modem - RX/TX, 1 Watt
- IP68 protection
- Withstands 2m pole topple-over
- Works with X-PAD Ultimate GO/Survey/Build field software
Original price $8,500.00 - Original price $8,500.00Original price List Price:$8,500.00$8,500.00 - $8,500.00Current price $8,500.00 -
Original price $7,200.00 - Original price $8,000.00Original price List Price:$7,200.00 - $8,000.00$7,200.00 - $8,000.00Current price $7,200.00GeoMax Zenith16 GNSS Smart Antenna, 555 Channels
Geomax- Flexible GNSS Configuration: Tracks GPS, GLONASS, and SBAS by default; optional upgrade for full constellation support including BeiDou, Galileo, and QZSS.
- Dual Configuration Options: Choose a version with built-in SATEL UHF radio (403–473 MHz, 500 mW) for local RTK setups, or a non-radio variant for network-based workflows like NTRIP.
- Built to Endure: With IP68 protection, shock resistance up to 2m, and an extended operating range (-40°F to 149°F), it handles tough field conditions with ease.
- Efficient Data Handling: Includes microSD card and USB connectivity for seamless logging and transfer of static and RTK data.
- Quick Setup & Accuracy: RTK fix in under 4 seconds and centimeter-level precision ensures survey-grade performance.
- xPad Software Compatible: Fully integrates with GeoMax’s xPad Ultimate for intuitive field-to-office workflows.
Original price $7,200.00 - Original price $8,000.00Original price List Price:$7,200.00 - $8,000.00$7,200.00 - $8,000.00Current price $7,200.00
GPS/GNSS surveying is the use of GPS and GNSS signals via a receiver and antenna to determine the form, boundary, and position of objects in the field. A GPS/GNSS System is a great alternative to traditional optical and mechanical methods of surveying which uses theodolites and other distance measuring equipment that utilizes angular and linear measurements and the principles of geometry and trigonometry. Over the years, GNSS technology has dramatically increased the speed and productivity of professional surveyors and construction professionals.
GPS/GNSS Systems for surveying can provide centimeter-level accuracy using RTK positioning method or sub-centimeter levels of accuracy when post-processing algorithms are applied. Multi-constellation GNSS receivers have increased signal availability and the ability to provide excellent performance, even in the presence of buildings, trees, vehicles, and other obstructions surveyors are likely to encounter on the job site.
Tiger Supplies offers the lowest prices on Geomax GPS/GNSS receivers. Shop now!
