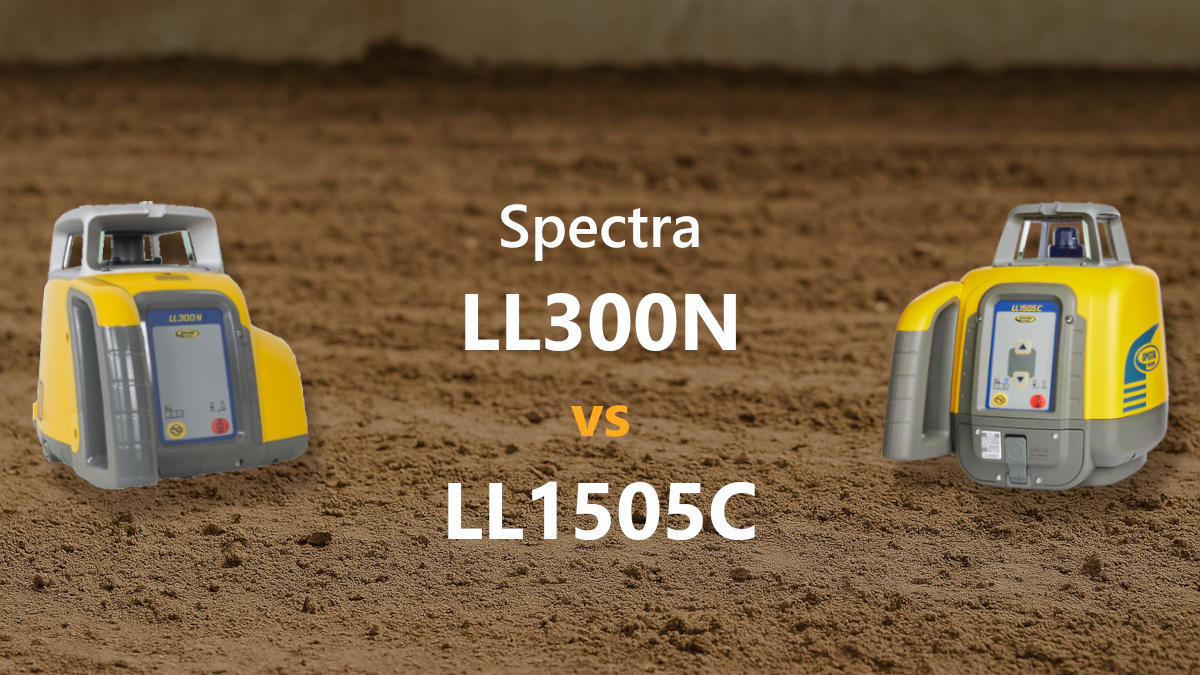

Spectra LL300N vs LL1505C: Which Rotary Laser is Right for You?
Spectra's rotary lasers have long been trusted for layout, leveling, and elevation control. The LL300N delivers reliable performance on tough jobsites, while the newer LL1505C adds advanced control features like manual slope and Bluetooth connectivity.
But which rotary laser is right for you? In this guide, we provide side-by-side comparison to help you make the right choice.
Spectra LL300N
With one-button operation and proven durability, the Spectra LL300N laser is ideal for contractors who need a reliable rotary laser for everyday leveling tasks. The working range of up to 1,650 feet, 600 RPM rotation speed and ±3/32 inch accuracy at 100 feet, makes it a solid choice for outdoor jobs.
The LL300N is fully self-leveling and features Height of Instrument (HI) Alert, which stops rotation if the unit is disturbed and prevents inaccurate readings. While it does not come with slope control, you can enable single-axis manual slope witd the optional RC601 remote.
It can withstand 3-foot drops onto concrete and even 5-foot tripod tipovers. It is also rated IP66 for protection against dust and water. With up to 90 hours of runtime on alkaline batteries, the LL300N is ideal for long days in the field without needing to recharge.
Spectra LL1505C
The Spectra LL1505C replaces LL300S. With a 4,000 feet working diameter (when paired with the HL760 receiver), variable rotation speeds and ±1/16 inch accuracy at 100 feet, it is suitable for both outdoor and indoor applications.
Unlike the LL300N, the LL1505C has built-in manual slope capability. It also includes Bluetooth connectivity that allows you to control slope and other functions straight from your smartphone using the Spectra Laser Remote app.
LL1505C maintains the same rugged durability as the LL300N, with IP66 weatherproofing, 1-meter drop protection, and a full 5-year warranty. It runs up to 55 hours on NiMH batteries.
LL300N vs LL1505C Technical Specifications Comparison
 |
 |
|
| Model | LL300N | LL1505C |
|---|---|---|
| Working Range | Up to 1,650 ft | Up to 4,000 ft diameter |
| Accuracy | ±3/32 in @ 100 ft | ±1/16 in @ 100 ft |
| Manual Slope Mode | No | Yes |
| Rotation Speed | 600 RPM | 300, 600, 900 RPM |
| Battery Life | Up to 90 hrs (Alkaline)/45 hrs (NiMH) | Up to 55 hrs (NiMH) |
| Digital Display | No | Yes |
| IP Rating | IP66 | IP66 |
| Weight | 5.9 lbs (2.7 kg) | 7.7 lbs (3.49 kg) |
| Warranty | 5 Years | 5 Years |
Key Differences between the LL300N and LL1505C
When choosing a rotary laser, some of the critical features to consider are working range, accuracy, durability, self-leveling and battery power. Both LL300N and LL1505C offer automatic self-leveling with IP66 dust and water protection. In addition, they can withstand drops of up to three feet onto concrete.
Here is how they compare across the features:
1. Range and Coverage
The LL1505C has a much broader working range, covering up to 4,000 feet in diameter when paired with the HL760 receiver. That makes it ideal for large-scale layout and grading tasks. In contrast, the LL300N has a maximum range of 1,650 feet, which is more than sufficient for residential and mid-sized commercial sites.
2. Accuracy
When it comes to precision, the LL1505C offers slightly better performance with ±1/16 inch accuracy at 100 feet. The LL300N provides ±3/32 inch accuracy at the same distance. While both are highly accurate, that small difference can make an impact over long distances or in grading applications where tight tolerances matter.
3. Rotation Speed
The LL300N operates at a fixed rotation speed of 600 RPM, which works well when working outdoors. The LL1505C adds flexibility by offering three selectable speeds: 300, 600, and 900 RPM. This is especially helpful when working with machine-mounted receivers or adjusting to lighting and visibility conditions.
4. Slope Functionality
The LL300N supports single-axis manual slope but only with the optional RC601 remote. The LL1505C, on the other hand, has slope functionality built in. Users can adjust slope directly from the keypad or control it remotely via the Spectra Laser Remote smartphone app.
5. Interface
The LL300N uses a basic button layout with no remote connectivity. In contrast, the LL1505C features built-in Bluetooth, allowing full laser control through the Spectra app on a smartphone.
6. Receiver Compatibility
The LL300N is designed to work with the HL450 receiver. The LL1505C supports both the HL450 and the HL760. The HL760 adds advanced features like PlaneMatch, allowing users to align slopes between two unknown elevations — ideal for drainage, ramps, and grading.
7. Battery Runtime
Both lasers are compatible with D-cell alkaline batteries and rechargeable battery packs, but the LL300N offers longer operating time overall. It delivers up to 90 hours on alkaline batteries and 45 hours on NiMH rechargeables. The LL1505C, while more versatile witd its 10,000 mAh rechargeable pack and internal/external charging options, provides a slightly shorter runtime — up to 55 hours on rechargeable batteries.
Conclusion
Still not sure which model fits your needs? Contact our team for personalized recommendations or to request a quote.
