T41 Data Collector

by Spectra Geospatial

MFR#: T41-G01-001

TIGER#: TS21071

List Price: $4,190^.00

You Save: $513^.00 -12%

$4,190^.00 - $4,190^.00

List Price: $4,190^.00

$3,677^.00

$3,677^.00 - $3,677^.00

$3,677^.00

T41 Data Collector - $3,677^.00

$3,677^.00

*Must Purchase 1 for T41 Data Collector

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 10-12 Weeks Shipping Date By: 2/26/2024

CALL FOR SPECIAL PRICING!

Documents

Product Manual Item Brochure

Integrated Bluetooth, WiFi, WWAN & GPS
16 GB internal memory
Built-in GPS receiver w/ 2 to 4-meter accuracy
8MP camera w/ geotagging
Slots: SIM card & microSD memory card
IP65 dustproof and water jet resistant
Touchscreen Gorilla Glass display
Battery life up to 14 hours

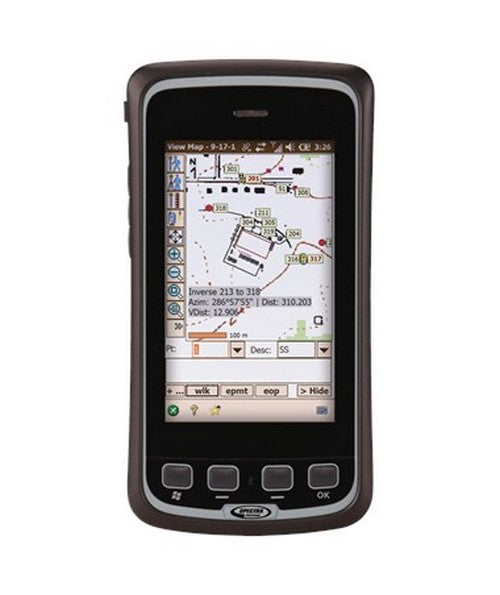

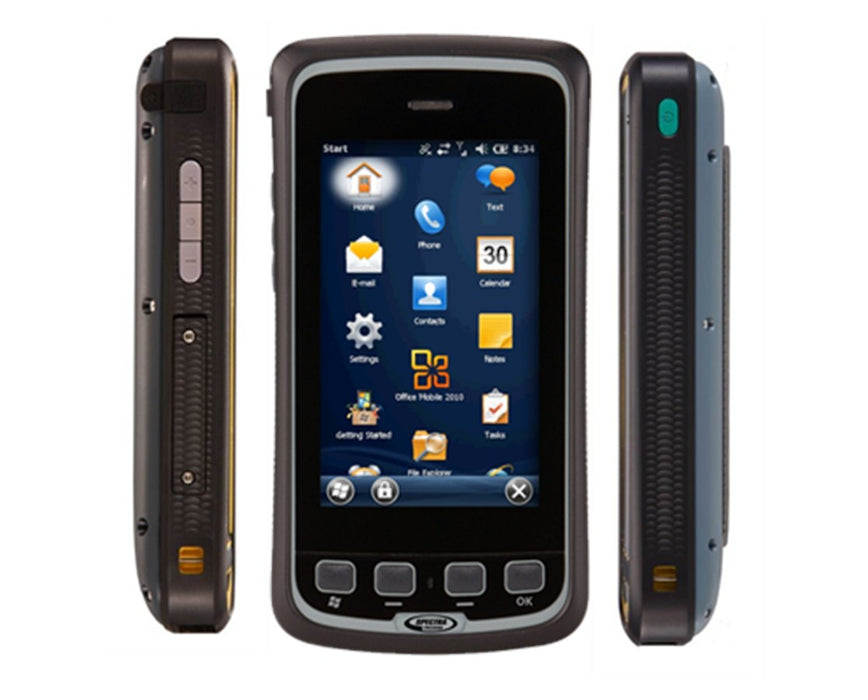

The Spectra T41 Data Collector is a handheld surveying field computer and smartphone used in conjunction with total stations when collecting precise measurements of coordinates, distances, angles, elevations and more. It features several selectable built-in software and is equipped with a Windows Embedded Handheld 6.5 operating system for ease of use. This data collector features a GPS receiver with two to four-meter accuracy and an accelerometer that easily detects movements and rotates the graphics on the screen accordingly.

This Spectra data collector is an all-in-one mobile device that combines all functionality needed with its integrated eight-megapixel camera with flash and geotagging features used for capturing detailed and high-quality images in the survey area. It features Bluetooth, WiFi, and WWAN to seamlessly transfer data from one device to another. The Spectra T41 also has a built-in 3.75G cellular data that supports GSM cellular networks worldwide.

The Spectra T41 survey data collector is powered by a Lithium-ion battery that lasts up to 14 hours on a single charge. It also has a 16-gigabyte memory for storing large survey data. For easy navigation, it uses a durable Gorilla Glass touchscreen display. Plus, the Spectra T41 is IP65 rated for dust and water protection.

Configuration Options

The Spectra T41 Data Collector is available with six surveying software to suit your needs. Please select your preference from the menu above.

800981-21: SurvCE
T41-S01-001: Survey Standard
T41-G01-001: Survey Pro GNSS
T41-M01-001: Survey Pro Max
T41-R01-001: Survey Pro Robotics

Runs with Windows Embedded Handheld 6.5 OS
Synchronization options for PC data transfer via Bluetooth or Wi-Fi
GPS receiver with 2 to 4-meter accuracy
MCX port for optional external GPS antenna
Internal non-volatile 16 GB Memory
Integrated 3.75G cellular data for SMS text messaging and phone calls
Integrated speaker and microphone
4.3-inch sunlight-readable Gorilla glass display
8-megapixel camera with geotagging and dual LED flash
Accelerometer for detecting rotation and motion gestures
Electronic compass
SIM card slot
MicroSD memory card slot; supports SDHC up to 32 GB
Conversion cables available for 9-pin serial or USB port
14-hour rechargeable, long life Li-Ion polymer Battery
Water resistant and dustproof to IP-65
Light sensor to auto-adjust display brightness

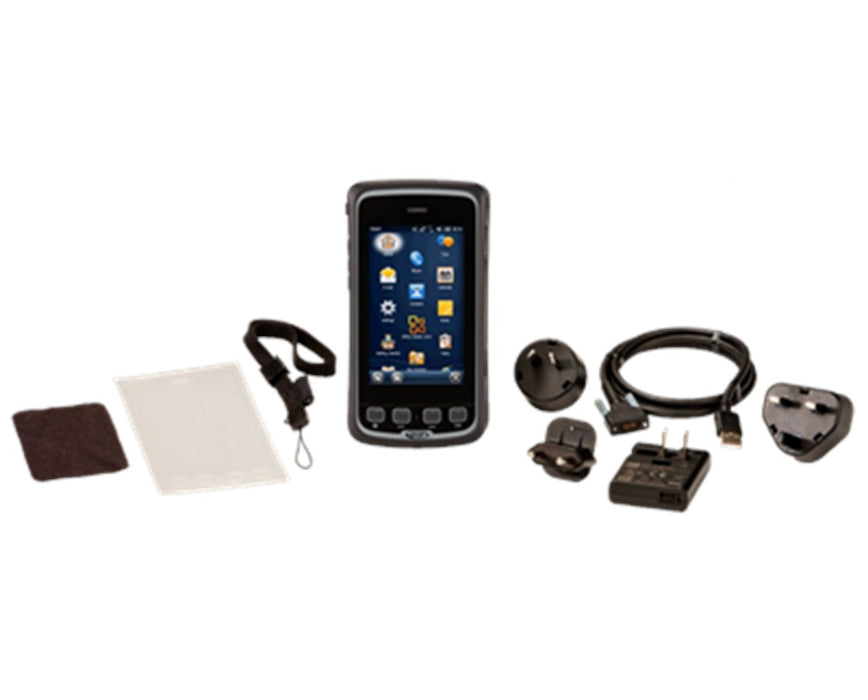

What’s in the Box

Spectra Precision T41 data collector with Windows Embedded Handheld 6.5 OS and Survey Pro Software
USB cable
Wrist strap
2 x Screen protectors
Rechargeable Li-ion battery
AC International charger
Quick Start Guide
Electronic User Manual
1-year manufacturer’s warranty

Available Product Options

Software: SurvCE, Survey Standard, Survey Pro Robotics, Survey Pro GNSS, or Survey Pro Max

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Battery/Power

Battery Life

Up to 14 hours

Battery Life Alert

Yes

Power Source

3300 mAh Li-Ion Polymer battery

Camera

Resolution

8 MP

Type

Geotagging and dual LED flash

Card Slots/Ports

Audio

3.5 mm

Micro (high-capacity)

Serial

9-pin

SIM

Yes

USB

Standard 2.0 host and client

Display/Keypad

Backlight

Yes

Resolution

480 x 800

Size

4.3 inches

Touchscreen

Yes, with stylus

Type

WVGA color LCD Gorilla Glass

Features

Accelerometer

Yes

Electronic Compass

Yes

Geotagging

Yes

Internet/Email

Yes

Phone/Text

Yes

General

Dimensions

6.1" L x 3.2" W x 0.9" H (15.5 x 8.2 x 2.5 cm)

Protection Class

IP65 dustproof and water jet resistant

Warranty

1-year

Weight

0.88 lbs (0.4 kg)

Interface/Data

Bluetooth

2.1 with Enhanced Data Rate

GPS Receiver

2 - 4 m accuracy with WAAS/SBAS correction

Operating System

Windows Embedded Handheld 6.5

Processor

Texas Instruments DM3730

Speed

1 GHz

WI-FI

Yes

WWAN

Quad-band GSM/GPRS/EDGE

Software

Type

SurvCE, Survey Standard, Survey Pro GNSS, Survey Pro Max, Survey Pro Robotics

Software Programs

Adobe Reader

Yes

Calculator

Yes

Calendar

Yes

Camera Control Application

Yes

CellStart (WWAN configuration application)

Yes

Contacts

Yes

Flashlight Mode Control Application

Yes

MS ActiveSync 4.x

Yes

MS Internet Explorer Mobile

Yes

MS Live Messenger

Yes

MS My Phone with SMS text messaging

Yes

MS Office Mobile

Yes

MS Pictures and Videos

Yes

MS Task Manager and Notes

Yes

MS Windows Media Player

Yes

SatViewer (GPS interface application)

Yes

Storage

Flash

16 GB

RAM

512 MB

Temperature

Operating

-22 to 144 ºF (-30 to 60 ºC)

Storage

-40 to 158 ºF (-40 to 70 ºC)
