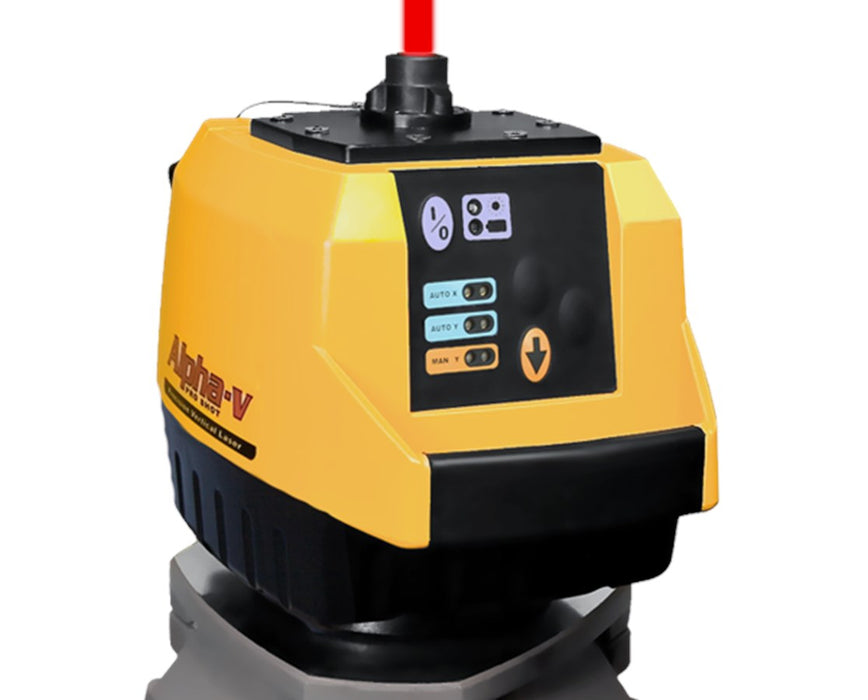

Alpha-V Self-Leveling Vertical Plumb Laser

MFR#: 020-0020V
TIGER#: TS59329
Original price List Price: $2,995.00
You Save: $427.50 -14%
Original price $2,995.00 - Original price $2,995.00
Original price List Price: $2,995.00
Current price $2,567.50
$2,567.50 - $2,567.50
Current price $2,567.50
Alpha-V Self-Leveling Vertical Plumb Laser
Alpha-V Self-Leveling Vertical Plumb Laser - $2,567.50
$2,567.50
*Must Purchase 1 for Alpha-V Self-Leveling Vertical Plumb Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 2/28/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
T2 Aluminum Survey Tripod
T2 Aluminum Survey Tripod
Details
$91.00
$105.00

The Pro Shot Alpha-V Self-Leveling Vertical Plumb Laser is designed to deliver superior accuracy and high performance to meet the high demands of construction industry. Ideal for plumbing, aligning, leveling, and squaring applications, it features an up beam with 3/8-inch spot diameter that can measure up to 330 feet (100 meters) with ±5-arc second accuracy and a 1/8-inch high-visibility down beam with 16-foot (five-meter) measurement range and ±1-arc minute accuracy.

This Pro Shot vertical plumb laser is equipped with servo motor leveling technology that allows it to self-level within ±4 degrees. It comes with a Height of Instrument alert that automatically turns the laser off when it is bumped or moved ensuring consistently accurate readings. For maximum efficiency and extended battery life, it enables automatic shut-off if off-level for more than three minutes. Its down beam also offers On and Flashing modes for great visibility and power conservation.

With its one-touch power button, the Pro Shot Alpha-V Self-Leveling Vertical Plumb Laser provides quick start-up. It is easily mountable with its 5/8-11 mounting thread that fits most tripods and mounts. It includes four C-cell alkaline batteries that can operate for up to 100 hours with flashing down beam and up to 65 hours with the down beam constantly running. It is rated IP56 for dust and water resistance while its 635-nanometer diode laser has CDRH (USA) Class 3A and IEC 825-1 Class 3R ratings.

The Pro Shot laser is made in the USA and is covered by a 6-year warranty combined with a 24-hour repair/return guarantee.

  • 3/8-inch up beam with 330 ft. (100m) measurement range
  • 1/8-inch down beam with 16 ft. (5m) measurement range
  • Beam accuracy: ±5 arc sec. (up beam) / ±1 arc min. (down beam)
  • Down beam offers On and Flashing modes
  • High-visibility 635nm diode (2.25mW )
  • Quick start-up with one-touch power button
  • Automatic shut-off after 3 min. off-level
  • Self-leveling range: ±4 degrees
  • Servo motor leveling technology
  • Laser classification: CDRH (USA) Class 3A; IEC 825-1 Class 3R
  • H.I. alert for maximum accuracy
  • 5/8-11 mounting thread fits most tripods and mounts
  • Four C-cell alkaline batteries for up to 100-hour operation
  • Rated IP56 for dust and water resistance
  • Operating temperature: 14ºF to +122ºF (-10ºC to +50ºC)
  • Storage temperature: -40ºF to +140ºF (40ºC to +60ºC)
  • Includes carrying case
  • 6-year manufacturer’s warranty (parts & labor

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 5% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Ceiling Joist and Rafter Alignment
Yes
Diagonals and Footings for Patios
Yes
Elevator Shafts
Yes
Flooring and Tile Layout
Yes
High Rise Jobsites
Yes
Installing Drop Ceilings and Lights
Yes
Installing Plumbing Pipes and Conduit
Yes
Installing Windows and Partition Walls
Yes
Leveling and Excavation
Yes
Stud Plumbing and Alignment
Yes
Tank Distortion Measurement
Yes
Towers
Yes
Transferring Points from Floor to Ceiling
Yes
Transferring Points from Wall to Wall
Yes
Battery/Power
Battery Level Indicator
Yes
Operating Temperature
14 to +122 ºF (-10 to +50 ºC)
Operating Time
UP to 100 hours with flashing down beam; 100 hours with down beam on
Power Source
4 x C-cell alkaline batteries (included ) or NiMH rechargeable batteries (not included)
Storage Temperature
-40 to +140 ºF (40 to +60 ºC)
Features
Environmental Class
IP56 dustproof and powerful water jet resistant
Power Save Mode
Automatic shut-off after 3 min. off-level; Down beam Flashing mode
Self-Leveling
±4 degrees
Tripod Thread
5/8 x 11
Functions
Aligning at an Angle
Yes
Plumbing Up and Down
Yes
Setting out Right Angles
Yes
Vertical Aligning
Yes
Vertical and Horizontal Aligning
Yes
General
Dimensions
15" L x 12" W x 8" H
Laser Class
CDRH (USA) Class 3A; IEC 825-1 Class 3R
Laser Type
635nm diode
Warranty
6 years
Weight
10 lbs
Measuring Capabilities
Beam Direction
Vertical
Leveling Accuracy
±5 arc sec
Number of Points
2
Plumb Accuracy
±5 arc sec. (up beam) / ±1 arc min. (down beam)
Self-Leveling Range
±4 degrees
Working Range
Up beam: up to 330 feet (100m); Down beam: up to 16 feet (5m)
