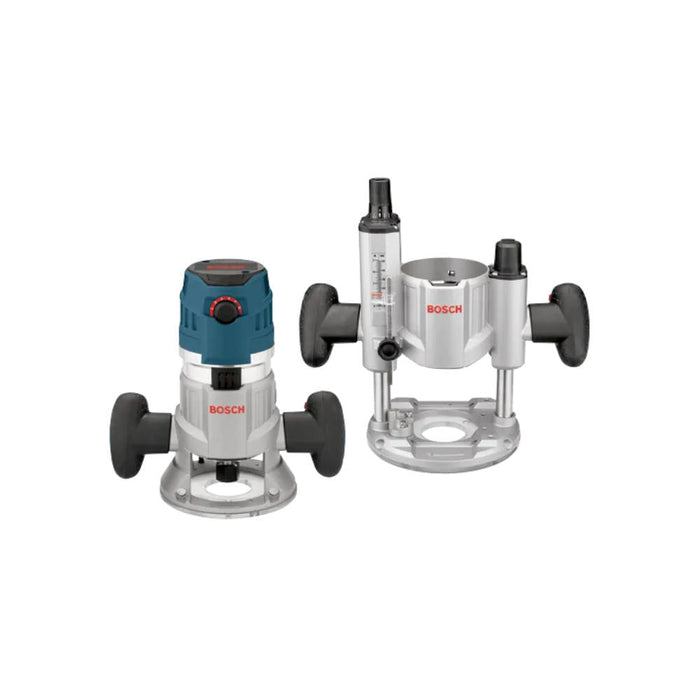

Bosch 2.3 HP Electronic Modular Router System | MRC23EVSK

by Bosch

SKU MRC23EVSK

List Price: CAD $981^.00

You Save: CAD $334^.00

CAD $981^.00 - CAD $981^.00

List Price: CAD $981^.00

CAD $647^.00

CAD $647^.00 - CAD $647^.00

CAD $647^.00

Store Pickup: List of available stores available on the Checkout page.

Model No.: MRC23EVSK

Bosch 2.3 HP Electronic Modular Router System | MRC23EVSK - CAD $647^.00

CAD $647^.00

*Must Purchase 1 for Bosch 2.3 HP Electronic Modular Router System | MRC23EVSK

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 5 - 7 Business Days Shipping Date By: 7/17/2026

Motor Rating: 15 amps
Horsepower Rating: 2.3 HP
Voltage: 120V
Rating: 120V AC
No-Load RPM: 10,000-25,000
Variable Speed: Yes
Speed Control: Variable-speed dial
Constant Response Circuitry: Helps maintain constant speed under load
Soft Start: Yes
Included Bases: Plunge base and fixed base
Base Diameter: 6" fixed base / 7" plunge base
Fixed-Base Depth Range: 1-5/8"
Plunge Depth: 3" / 75 mm
Depth Adjustment: Afterlock plunge-base depth adjustment and fixed-base microfine adjustment
Router Table Adjustment: Above-table depth adjustment when fixed base is installed in router table
Router Table Mounting: Threaded holes in common three-hole pattern
Collet Capacity: 1/4", 3/8", 1/2", 8 mm
Subbase Opening: 2"
Trigger-Control System: Power switch located in handle
Precision-Centering Design: Helps keep bit aligned with subbase or optional template guides
LED Light: Always-on LED lighting near bit area
Base Change System: Two-stage quick clamp system
Handles: Contoured soft-grip handles
Cord Design: Cord swivel for added mobility
Dust Collection: No
Case Type: Hard plastic carrying case
Height: 9.5"
Length: 6.75"
Width: 12.6"
Works With: Bosch router tables, offset bit-change wrench set, router guide, template guide systems, template guide adapter set, centering device, and dust collection attachments
Application: Edge forming, plunge routing, template routing, dovetail work, cabinetry, woodworking, router-table use, finish carpentry, guided cuts, and repeated depth routing

The Bosch 2.3 HP Electronic Modular Router System gives woodworkers, cabinetmakers, remodelers, and finish carpenters a powerful fixed-base and plunge-base routing setup for edge forming, template work, dovetail cuts, plunge cuts, guided routing, and router-table applications. Its 15 amp motor delivers 2.3 HP with a variable-speed range of 10,000 to 25,000 RPM, allowing users to match speed to the material, bit size, and application.

The system includes both fixed and plunge bases, with a trigger-control power switch located in the handle for better control during operation. Constant Response circuitry helps maintain speed under load, while soft-start technology reduces startup torque. The plunge base includes Afterlock microfine depth adjustment at any plunge setting, and the fixed base offers a 1-5/8" continuous microfine depth range with above-table depth adjustment when mounted in a router table. Precision-centering design helps keep the bit aligned with the subbase or optional template guides, while the two-stage quick clamp system supports faster tool-free base changes.

What’s in the Box

Motor
Fixed Base (MRF01)
Plunge base (MRP01)
1/4" Self-Releasing Collet Chuck - 2 610 906 283
1/2" Self-Releasing Collet Chuck - 2 610 906 284
16mm Shaft Wrench - 2 610 991 388
24mm Collet Nut Wrench - 2 610 992 417
T-Handle Hex Height Adjustment Wrench - 2610923193
Carrying Case - 2 610 004 484
Pack of 3 M4 Screws for table mounting - 2610005966
