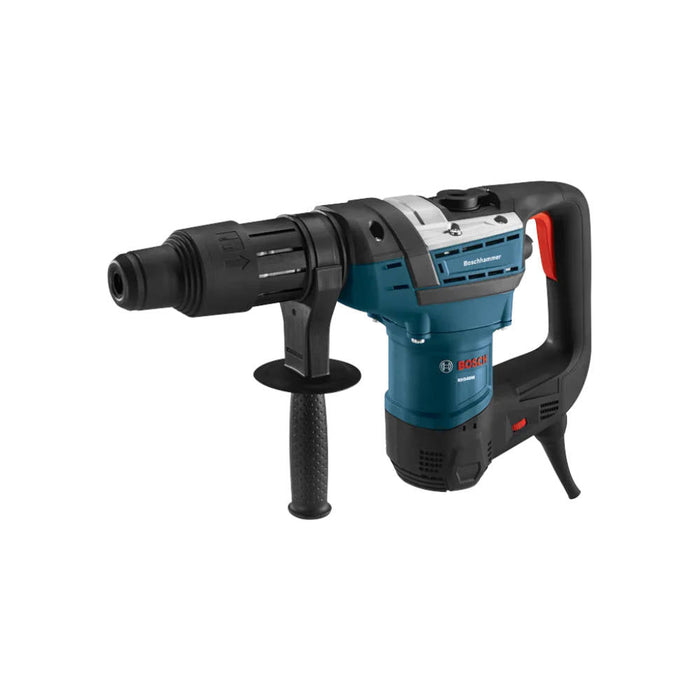

Bosch 1-9/16 SDS-Max Combination Hammer | RH540M

by Bosch

SKU RH540M

List Price: CAD $1,344^.00

You Save: CAD $457^.00

CAD $1,344^.00 - CAD $1,344^.00

List Price: CAD $1,344^.00

CAD $887^.00

CAD $887^.00 - CAD $887^.00

CAD $887^.00

Store Pickup: List of available stores available on the Checkout page.

Model No.: RH540M

Bosch 1-9/16 SDS-Max Combination Hammer | RH540M - CAD $887^.00

CAD $887^.00

*Must Purchase 1 for Bosch 1-9/16 SDS-Max Combination Hammer | RH540M

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 5 - 7 Business Days Shipping Date By: 7/17/2026

Material: Metal and plastic
Amperage: 12 amps
Voltage: 120V
Drive System: SDS-max®
Chuck Size: 1-9/16"
Chuck Design: Keyless
Impact Energy/EPTA: 6.1 ft.-lb. EPTA
No-Load BPM: 1,500 to 2,900
No-Load RPM: 170 to 340
Variable Speed: Yes
Reverse: No
Operating Modes: Rotary hammer and hammer-only mode
Maximum Bit Diameter: 1-9/16"
Maximum Hole Diameter in Concrete: 1-9/16"
Maximum Hole Diameter with Concrete Core Bit: 4"
Maximum Hole Diameter with Concrete Thru-Hole Bit: 2-1/2"
Optimal Concrete Capacity Range: 1/2" to 1-3/8"
Chisel Positioning: 12-position Vario-Lock mechanism
Maintenance Feature: Service minder brushes
Service Design: Service modules
Works with: Dust Extraction/Collection Hoods, HDC200, HDC250, HDC300, SDS-max® Hammer Adapter for SDS-plus® Accessories, HA1030, SDS-max® Hammer Adapter for Spline Accessories, HA1031, SDS-max® Hammer Adapter for 1/2"-20 Thread Accessories, HA1032

The Bosch RH540M SDS-max® 1-9/16" Combination Hammer is made for concrete contractors and remodelers who need rotary hammer drilling and hammer-only chiseling in one tool. It delivers 6.1 ft.-lb. of impact energy and supports up to 1-9/16" holes in concrete, 2-1/2" thru-hole bit drilling, and 4" concrete core bit drilling. This makes it useful for anchor holes, concrete drilling, light demolition, and chisel work.

The dual-mode selector lets users switch between rotary hammer mode and hammer-only mode based on the application. The SDS-max® bit system allows tool-free, one-handed bit changes, while the Vario-Lock mechanism lets the chisel rotate into 12 positions for a better working angle. Service minder brushes and service modules help simplify maintenance when the tool needs attention.

What’s in the Box

RH540M SDS-max® 1-9/16 In. Combination Hammer
(1)x Auxiliary Handle
(1)x Grease Tube
(1)x Carrying Case
