Schonstedt GA-72Cd

by Schonstedt

MFR#: GA-72Cd

CAD $1,697^.00 - CAD $1,697^.00

List Price: CAD

CAD $1,697^.00

CAD $1,697^.00 - CAD $1,697^.00

CAD $1,697^.00

Store Pickup: List of available stores available on the Checkout page.

Schonstedt GA-72Cd - CAD $1,697^.00

CAD $1,697^.00

*Must Purchase 1 for Schonstedt GA-72Cd

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 3 - 5 Business Days Shipping Date By: 12/11/2024

The Schonstedt level of sensitivity allows you to find what you’re looking for quickly, without the risk of passing over your target.

Easy-To-Use

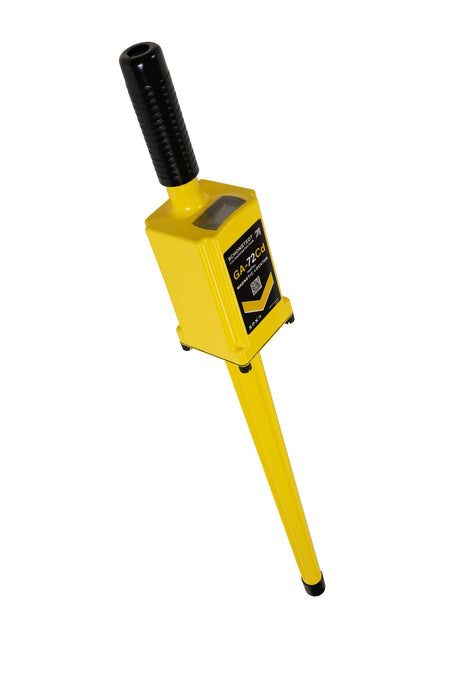

The GA-72Cd Locator detects the magnetic field of iron and steel objects. It provides audio detection signals that peak in frequency when the locator’s tip is held directly over the target.

Only two Controls

Designed for one-hand operations, the On/Off-Sensitivity and Volume controls are located on the underside of the cover. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability.

Features

Most Rugged
Most Popular for UXO and Demining Applications
Audio & Visual Output
Battery & Sensitivity Indicators
Choice of Two Audio Modes: Peak or Null response
4 Levels of Sensitivity
3-digit LCD readout
Signal Strength and Polarity Indications
No response to aluminum, brass, or copper
HeliFlux® sensors
Modular construction; high performance components
7-year warranty

Specifications

AUDIO OUTPUT	Switch at “A” Signal increases or decreases in volume with gradient-field intensity Switch at “B” Signal increases or decreases in frequency with gradient-field intensity.

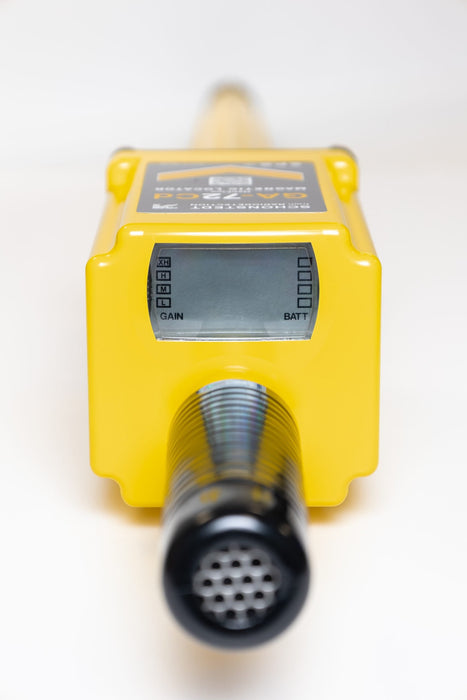

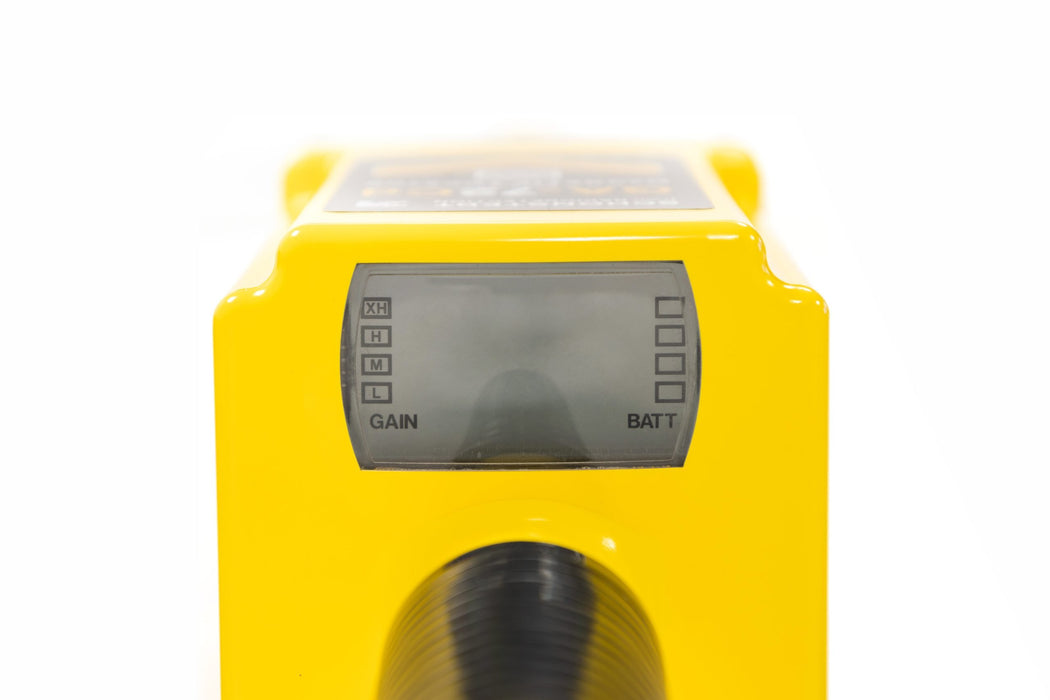

VIDEO OUTPUT	Digital readout and expanding bar graphs indicate polarity (+ or-) and relative strength of the magnetic field.
INPUT POWER	Supplied by two 9V batteries
BATTERY LIFE	40 Hours (intermittent usage)
BATTERY CHECK	4-segment LCD BATT indicator
OUTPUT	Approximately 40 Hz audio tone on speaker. Tone frequency increases or decreases with gradient-field intensity.
WEIGHT	Approximately 2.5 lb (1.14 kg)
OPERATING TEMP	-13° to 140°F (-25° to 60°C)
OVERALL LENGTH	34.5" (87.6 cm)
WATERPROOF LENGTH	21" (53.3 cm)
NOMINAL SENSOR SPACING	14" (35.6 cm)
CONSTRUCTION	Rugged, all solid state, polycarbonate & ABS casing
